SY-R61 Rebar Corrosion Tester For Testing The Rebar Corrosion By Electrochemical Method

SY-R61 Rebar corrosion tester

Application: used to test the degree of steel-bar corrosion by electrochemical method. It can check the concrete rebar corrosion status, then estimate the effect to the building structure. So the project can find one better solution to avoid this problem.

Standard:

GB 50204-2015 Code for quality acceptance of concrete structure construction

GB/T 50344 -2004 Technical standard for inspection of building structure

Parameters:

Features:

1. Two test modes: The potentiometry and gradient method is used to test steel-bar corrosion which suitable for different working field.

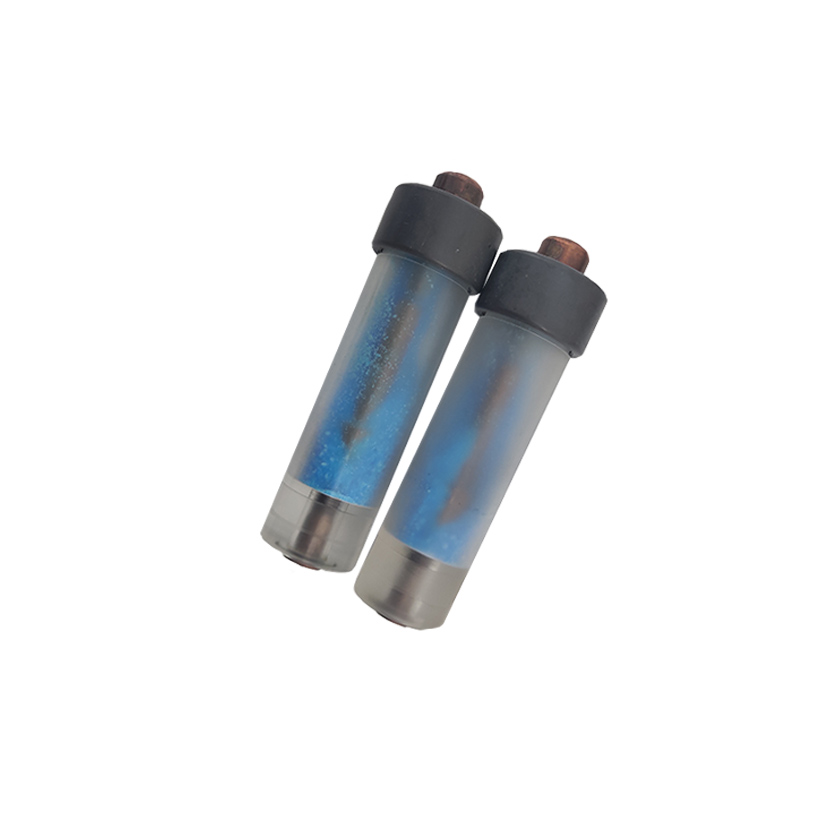

2. Permanent reference electrode: Saturated CuSO4 solution is sealed up completely in reference electrode. Field test keeps clean, simple and pollution-free operations.

3. Automatic measure environmental temperature. Instrument is with a environmental temperature module, it can measure, record and display temperature quickly, no need thermometers.

4. Can save test date. Convenient for data management.

5. Display test result intuitively by icon mode, The icon color is more dark, the steel-bar corrosion is more serious. User can observe the corrosion degree intuitively.

6. USB transmission. Data can be transmitted to computer for future process and analysis.

7. Powerful data process and analysis software, test data can be exported to word or excel for future process and analysis.

Beijing Samyon Instruments Co., Ltd is specializing on designing, developing and selling concrete Pile Testing Instruments and Optical fiber bragg Grating(FBG. )

1.Concrete Pile Testing Instruments includes: High strain dynamic pile tester, Pile integrity tester, Static pile loading tester, Ultrasonic crosshole pile tester, Ultrasonic drillhole monitor, Nonmetal ultrasonic detector and NDT (Non Destructive Testing) equipments, construction instruments, and laboratory instruments, such as, Concrete resistivity tester, Concrete migration tester, Concrete penetration tester, Crack width/depth meter, Rebar location system, Test hammer, Strength tester, Concrete defect tester, Corrosion tester, Colorimeter, Hardness tester, Ultrasonic flaw detector, Concrete testing equipment, Soil testing equipment, Cement testing equipment, Asphalt testing equipment, and so on . The company takes the science and technology as the guide, with strict management and strong research and development team.

    High Strain Dynamic Pile Tester (Also named PDA by PDI company. )  ;  Low Dynamic Pile Tester (PIT or PET for short); Untrasoic Crosshole Pile Tester for 2, 3 ,4 channels.; Drillhole Monitor  (Also named Koden from Japan company. )

High Strain Dynamic Pile Tester projects at field. If clients need, we also can do the testing compare with PDA from PDI company. We already have done testing at different countries. We got very good feedback from our professional pile testing clients and relative company.

Low Strain Dynamic Pile Tester at field with our software;  Static Load Pile testing at field with our software.

Drill hole monitor testing at field with 100meter depth, with automatic stop function to save untrosonic sensor drop in wells making lost for inspection company.  We also can supply drillhole monitor with 150m depth.

2. Optical Fiber Bragg Grating for temperature and Strain gauge

As FBG strain gauge and temperature sensor are popular in construction monitor system, we also concentrate in this aspects for many years. DTS. DVS system.

Our Lab for optical fiber bragg grating

Oven Humidity and temperature testing.

SAMYON will follow the operation principle to pay more attention to the needs of customers and provide the high quality, competitive products and convenient services to the market with outstanding research and development ability and the exquisite technology.
With more than 10years experiments, SAMYON commits us supply professional line instruments and service to our clients refers to Building, Bridge, Highway, Channel, Airport and so on. At present, we have many international customers from European countries, UK, USA, Thailand, India, Indonesia, South Africa, Pakistan, Singapore, Austrilia, Vietnam, Russia, Brazil, Chile, and so on.
