73mm/40mm Well Borehole Camera 750TVL 12Inch Display Easy Operation Plate type Winch

Borehole Camera Specification:

73mm Well Borehole Camera has Single Camera with 750 TVL. When works with SAMYON winch ,It is the light system for fast well inspection. Front camera is with 8 pieces LED light.

It also can bear pressure upto maximum 20Mpa (upto depth 2000meter in water well. ). It works with our black color controller with 12 inch display, 32GB U disk and keyboard to easily taking notes during borehole testing. It also can be equiped with all kinds of SAMYON Winch: BlueH (handle) ,BlueE, AE, AEW(self winding function), Plate type GrayE and GrayEW(self - winding function). It is suitable for the borehole diameter more than 80 mm well.

SAMYON also have 40mm Single Borehole Camera that is suitable for smaller well examine more than 45mm diameter.

When works with one winch and cable system, it can realize exchange with 73 DUAL, 73DUAL FOCUS, and 40 mm Single Camera.

73mm Dual Borehole Camera Application:

SAM-73S is suitable Dry hole and Wet hole for engineering geology, hydrogeology, geotechnical engineering, mining and petroleum geology and other industries; it can be used to detect fissure, dislocation, falling objects, blockage of filter pipe hole and the position of fluid sand, etc.

it can also observe the bedrock fissures and development state as well as the size and position of karst caves and other geological conditions in bedrock area.

Borehole Camera Parameters:

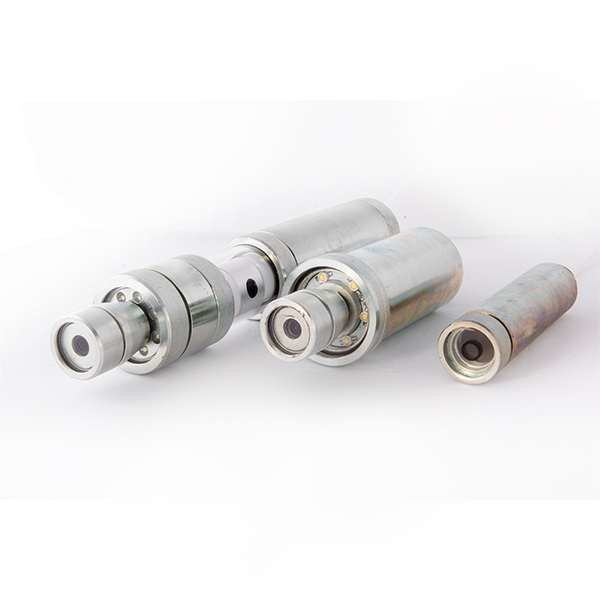

Borehole Camera Pictures:
