    HD EYE Borehole Inspection Camera 1920* 1080 200 Million Pixel For CCTV

    Ask Lasest Price
    Brand Name : SAMYON
    Certification : ISO
    Price : USD1000 ~ USD20000.00
    Payment Terms : T/T, Western Union
    Supply Ability : 100sets per week
    Delivery Time : 3days
    Model Number : HD EYE
    • Product Details
    • Company Profile

    HD EYE Borehole Inspection Camera 1920* 1080 200 Million Pixel For CCTV

    High Definition Borehole Camera CCTV 200 million Pixel Software Report 73mm dual Camera


    HD EYE CCTV Introduction:

    Digital HD Borehole Camera is the second generation of borehole camera which designed by our company, that can replace the common analog signal camera . It is with high video and photo quality 200million Pixels which can solve problems under borehole very easily and fast.


    HD EYE CCTV Application:

    Water Well Testing; Geothermal Well Testing; Oil Well Testing; Drill Hole Testing; Coal Mine Ventilation Shaft Testing


    It is also suitable Dry hole and Wet hole for engineering geology, hydrogeology, geotechnical engineering, mining and petroleum geology and other industries; it can be used to detect fissure, dislocation, falling objects, blockage of filter pipe hole and the position of fluid sand, etc.

    it can also observe the bedrock fissures and development state as well as the size and position of karst caves and other geological conditions in bedrock area.


    HD EYE CCTV Feature:

    1.HD Digital camera

    Video Resolution: 1920* 1080, Pixel: 2 million - 5 million.

    2.Working Depth

    Can reach to 2000m - 5000m, no signal interference, totally solve the problem of signal interference when the camera reach to 1000m inside well.

    3.Extension Force

    The system is equipped with tension sensor, when the cable is blocked inside down hole and the tension is too high, the system tension value will alarm, avoid excessive force, cable fracture, probe drop down to the well.

    4.Temperature Value

    Temperature sensor can inspect the temperature change inside well in the real time.

    5.Depth calibration

    customer can manually input the diameter of the pulley and to proceed the depth measurement calibration.

    6.Various video collection window

    can be shifted easily between dual camera dual video collection window and dual camera single video collection window.

    7.Easy Operation

    System function key can be controlled by PC, save time and easy for site operation, and also can be operated on the main control box.

    8.Software Report

    It can automatically output the testing report, include the project name, inspector, well number, well depth, test condition, etc, and also can customized the report format according to the customer requirement.


    HD EYE CCTV Specification details:

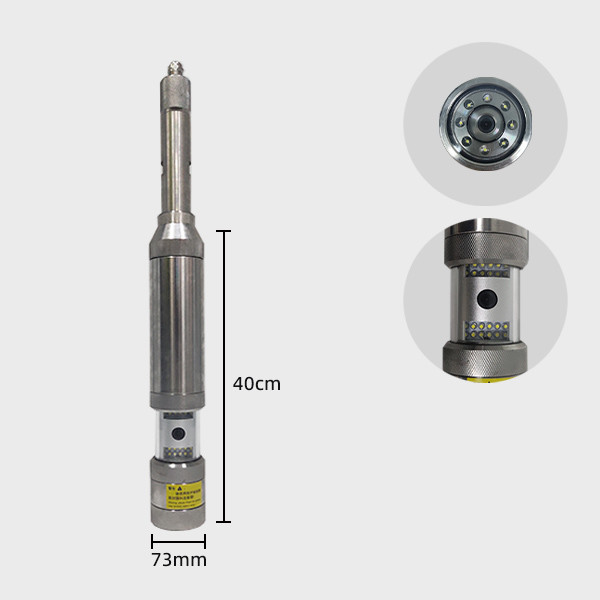

    1. Outer Diameter73mm(Dual)
    360°RotateSide Camera Support
    Resolution1920* 1080
    Pixel2 Million
    Pressure20Mpa
    Light BrightnessAdjustable
    FocusAdjustable
    Shelf Material304 Stainless Steel


    2. Outer Diameter


    78mm(panorama)

    Resolution1920*1080
    Pixel2 Million
    Pressure50 MPa
    Environment Temp95℃
    Shelf Material

    304 Stainless Steel


    SoftwareFunction
    Temp ValueSupport
    Tension ValueSupport
    Depth CalibrationSupport
    Testing ReportSupport
    Window SwiftSupport
    TDS MonitoringSupport
    Video StorageSupport
    Photo CaptureSupport
