    2Mpa 63MPa Anchor Bolt Pull Test Equipment 0-1000KN Smaller Size Lightweight

    SY-50T/60T/80T/100T Electric Anchorage Force Tester For Rebar Or Bolt Anchoring Force


    SY-50T/60T/80T/100T Electric Anchorage Force Tester


    Application:

    It is suitable for testing the anchorage force of several of anchor shank, rebar and expansion bolts, also the pull force of glass block screen wall.


    Standard:

    GB 50367-2013 Code for design of strengthening concrete structure

    GB 50550-2010 Code for acceptance of construction quality of strengthening building structures

    CECS 22:2005 Technical specification for ground anchors


    Parameters


    ModelSY-50TSY-60TSY-80TSY-100T
    Manual pumpMax Pressure63MPa(High), 2Mpa(low)
    Max handle pressure500N
    Oil capacity3L
    Weight12kg
    Oil cylinderMax force500KN600KN800KN1000KN
    Piston stroke:120mm150mm
    Weight:26kg33kg42kg56kg
    Central hole:60mm65mm75mm85mm
    Digital pressure gaugeTest range0-500KN0-600KN0-800KN0-1000KN
    Power supply9v battery
    Weight0.4kg

    Anchorage specifications

    (Optional)

    φ6, φ8, φ10, φ12, φ14, φ16, φ18, φ20, φ22, φ25, φ28, φ32, φ36, φ38, φ40

    Connector specifications

    (Optional)

    M6, M8, M10, M12, M14, M16, M18, M20, M22, M24,M27, m32, m39

    Features:

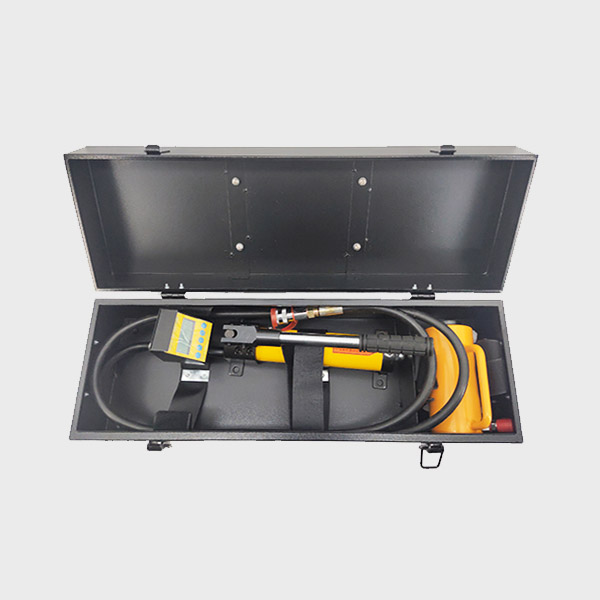

    1. It consists of Manual pump, Hydraulic cylinder, Digital pressure gauge, and High-pressure rubber pipe.

    2. The manual pump is of High-Low pressure dual-Radial Piston design more efficient.

    3. The High precision cast steel increase its life.

    4. The Hydraulic cylinder adopts hollow automatic reset design. Hydraulic cylinder has handhold which connects the high pressure pipe with the two connectors. Digital pressure gauge directly shows the tension value.

    5. It is featured by compact designation, portable, smaller size, and light weight.
