WEW Microcomputer Screen Display Universal Testing Machine for concrete compression testing

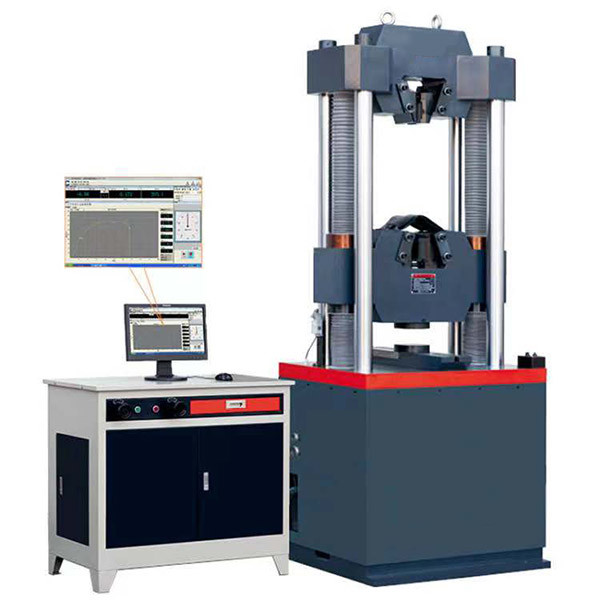

WEW Microcomputer Screen Display Universal Testing Machine

Application:

This product is mainly used for the tensile test of metal material and component, testing the tensile strength, yield strength, stipulated plastic extension strength, elasticity modulus, percentage elongation after fracture and other mechanical performance index. Control method of rate testing: manual control. The testing results can be automatically stored, and the testing report, including the testing data and testing curve would be generated and printed automatically.

Standard:

BS EN ISO 898-1-2013, BS EN ISO 898-2-2012, ISO 7438-2020, ISO 6935-2-1029, BS EN ISO 15630-1-2019, GB/T 232-2010, GB/T 3098.2-2015, GB/T 3098.1-2010, GB/T 1499.2-2018

Parameters:

Features:

1. Famous brand sensor configuration(sensor of Class 0.5 is from world famous brand, while sensor of Class 1 is from domestic famous brand) to keep high precision and stability

2. The stress is ten thousandth control accuracy, with high testing rate control accuracy, conforming to the Standard of ISO 6892-1-2019

3. The software of this series of products has passed the evaluation of the National steel material testing center, the testing data can be traced to the source

4. Unit taking part in the drafting of Verification Regulation of Electro-hydraulic Servo Universal Testing machines for JJG 1063-2010

5. Gaining national patent, the servo pump device of computer-control electro-hydraulic servo universal testing machines.

6. Patent characters: high testing rate control accuracy, ultra-silence and energy conservation

Beijing Samyon Instruments Co., Ltd is specializing on designing, developing and selling concrete Pile Testing Instruments and Optical fiber bragg Grating(FBG. )

1.Concrete Pile Testing Instruments includes: High strain dynamic pile tester, Pile integrity tester, Static pile loading tester, Ultrasonic crosshole pile tester, Ultrasonic drillhole monitor, Nonmetal ultrasonic detector and NDT (Non Destructive Testing) equipments, construction instruments, and laboratory instruments, such as, Concrete resistivity tester, Concrete migration tester, Concrete penetration tester, Crack width/depth meter, Rebar location system, Test hammer, Strength tester, Concrete defect tester, Corrosion tester, Colorimeter, Hardness tester, Ultrasonic flaw detector, Concrete testing equipment, Soil testing equipment, Cement testing equipment, Asphalt testing equipment, and so on . The company takes the science and technology as the guide, with strict management and strong research and development team.

    High Strain Dynamic Pile Tester (Also named PDA by PDI company. )  ;  Low Dynamic Pile Tester (PIT or PET for short); Untrasoic Crosshole Pile Tester for 2, 3 ,4 channels.; Drillhole Monitor  (Also named Koden from Japan company. )

High Strain Dynamic Pile Tester projects at field. If clients need, we also can do the testing compare with PDA from PDI company. We already have done testing at different countries. We got very good feedback from our professional pile testing clients and relative company.

Low Strain Dynamic Pile Tester at field with our software;  Static Load Pile testing at field with our software.

Drill hole monitor testing at field with 100meter depth, with automatic stop function to save untrosonic sensor drop in wells making lost for inspection company.  We also can supply drillhole monitor with 150m depth.

2. Optical Fiber Bragg Grating for temperature and Strain gauge

As FBG strain gauge and temperature sensor are popular in construction monitor system, we also concentrate in this aspects for many years. DTS. DVS system.

Our Lab for optical fiber bragg grating

Oven Humidity and temperature testing.

SAMYON will follow the operation principle to pay more attention to the needs of customers and provide the high quality, competitive products and convenient services to the market with outstanding research and development ability and the exquisite technology.
With more than 10years experiments, SAMYON commits us supply professional line instruments and service to our clients refers to Building, Bridge, Highway, Channel, Airport and so on. At present, we have many international customers from European countries, UK, USA, Thailand, India, Indonesia, South Africa, Pakistan, Singapore, Austrilia, Vietnam, Russia, Brazil, Chile, and so on.
