HSRD-45 Motor-Driven Superficial Rockwell Hardness Tester For Superficial Rockwell Hardness Of Ferrous Metals

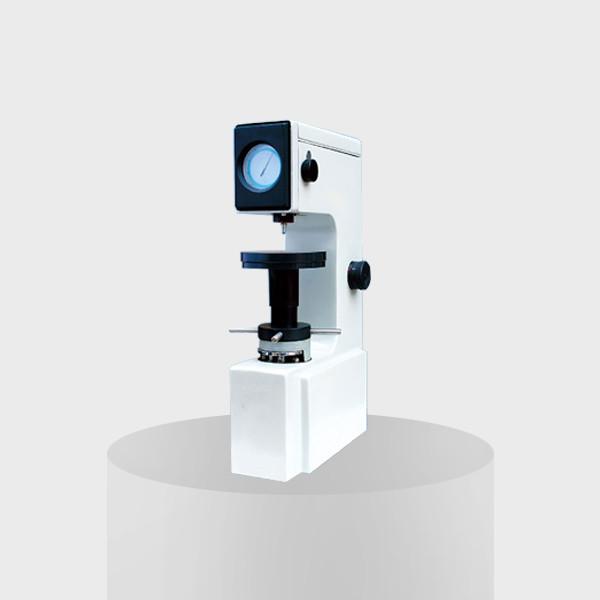

HSRD-45 Motor-Driven Superficial Rockwell Hardness Tester

Application:

It is used to determine the Superficial Rockwell hardness of ferrous metals, alloy steels and hard alloys, as well as treated layers of metal surface, such as carburized layer, nitrided layer and electroplated coating, etc. The testing precision conforms to the Standards of GB/T230.2, ISO 6508-2 and ASTM E18. With the motor-driven feature, it will finish the testing work automatically, no human operating error.

Standard:

ASTM E18-2020 Standard Test Methods for Rockwell Hardness of Metallic Materials

GB/T 230.2-2012 Metallic materials –Rockwell hardness test – Part 2: verification and calibration of testing machines(scales A,B,C,D,E,F,G,H,K,N,T)

ISO 6508-2: 2015 Metallic materials – Rockwell hardness test – Part 2: Verification and calibration of testing machines and indenters

Parameters:

Features:

1. Precision conforms to the Standards of GB/T230.2, ISO 6508-2 and ASTM E18

2. Automatic testing process, no human operating error

3. Frictionless loading shaft, high precision testing force

Standard accessories

Large flat anvil: 1 pc.

Small flat anvil: 1 pc.

V-notch anvil: 1 pc.

Diamond cone penetrator: 1 pc

1/16" steel ball penetrator: 1 pc.

Superficial Rockwell standardized block: 4 pcs.
