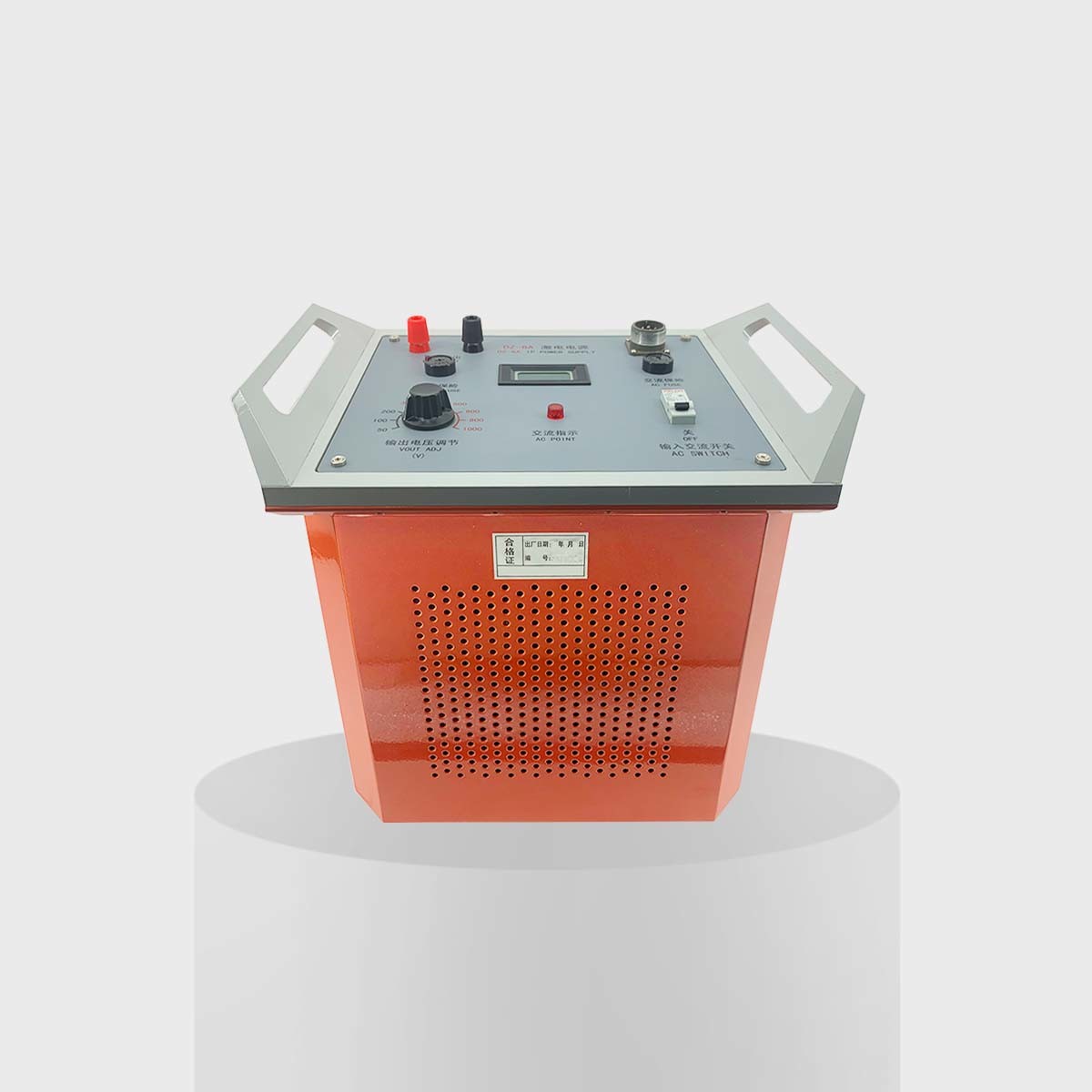

DJF-10A Big Power IP Resistivity Transmitter 10kw 800meter Depth Geological Exploration

DJF-10A Big Power IP Resistivity Transmitter 10kw 800meter Depth Geological Exploration

Introduction

DJF-10A induced polarization transmitter is an induced polarization sending system composed of DJF-10A main set and DZ-10A commutation supply, is an automatic power supply device matched with DWJ-3B microcomputer induced polarization instrument.

Feature:

1. Ø Duty ratio of 1:1 with periods of 4″,8″,16″,32″,64″.

2.An external controller where the power-on time and period is controlled by the DWJ-3B, which especially applies to IP Groundwater Prospecting, IP sounding, IP in near field sourer, IP oil finding, even in strong interference environment.

3.The high voltage power supply can be provided by the DC from DZ-10A(dummy load equipped with balancing generator), or by dry cell and storage cell in case of low power, which indicates a strong adaptability.

4. The main circuit works steadily and reliably by reason that it has adopted silicon controlled rectifier Commutation Bridge and DC switch without mechanic contacts.

Specification Details:
