CBR-1 Laboratory California Bearing Ratio Tester For The Soil CBR Value Geotechnical Testing

California Bearing Ratio Tester

Application:

CBR Test Apparatus is suitable for various soils and mixtures (soil with a particle size of less than 40mm) after being compacted in the specified test cylinder mold, and then carrying out a load-bearing ratio test to determine the bearing capacity of designed pavement, pavement base, sub-base, and road base material layer. It is one of the necessary instruments for geotechnical testing.

Standard:

GB/T 50123-2019 Standard for geotechnical testing method

JTG E40-2007 Test methods of soils for highway engineering

TB10102-2010 Code for soil test of railway engineering

SL237-1999 Specification of soil test

Parameters:

Features:

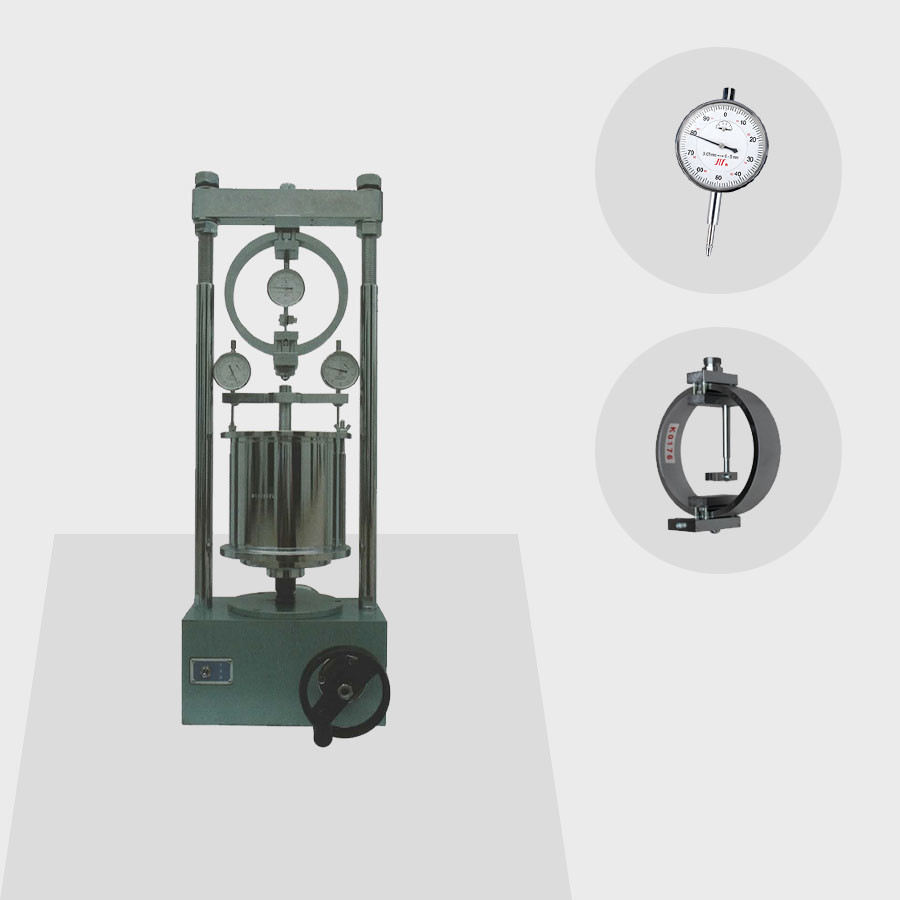

1. The instrument consists of a host, a measuring ring and a penetrating rod, a loading plate, a dial indicator, an expansion measuring device, etc.

2. The instrument has the characteristics of small size, large output and convenient operation.
