    78mm Oil Deep Borewell Inspection Camera Multi Domain Use

    Ask Lasest Price
    Brand Name : SAMYON
    Model Number : SAM-78
    Certification : ISO
    Price : Can be negotiated
    Payment Terms : Western Union, MoneyGram, , T/T, D/P, D/A
    Supply Ability : 999/mth
    Delivery Time : 8-10days
    • Product Details
    • Company Profile

    78mm Oil Deep Borewell Inspection Camera Multi Domain Use

    78mm Oil Well Inspection Camera 50Mpa 3500m Borehole Inspection Camera


    78mm Oil Well Inspection Camera Introduction:


    78mm oil well inspection borehole camera normally is used for the deep oil well inspection more then 1000 meters, because of its structure: the main camera tube is made of 316 stainless steel, 8 Pieces front LED lights, with toughened front glass to increase its clearance; side quartz glass avoiding damaged. The black color portable PC controller is 15.5 Inches BNC/VGA/HDM/USB engineering display. The system adopts 4 core armed steel cable to ensure the safety during working, the cable tension is12KN.


    78mm Oil Well Inspection Camera Introduction:


    Besides the engineering geology, hydrogeology, geotechnical engineering, mining and petroleum geology and other industries; the 78mm Oil Well Inspection Camera can be used in the high temperature geothermal well and high depth oil well, it can bear 95 degree high temprature, and also can be wildly used in the Geothermal well inspection.


    Borehole Camera Parameters:


    78mm oil well inspection borehole camera can not exchange with another type of SAMYON camera; it only can work with the steel material electric winch and the steel cable.


    The standard cable length is 3500meter, the cable length can be ordered according to the customer requirement from 1000meter to the 4000meter depth.


    Main Controller
    • Size: 415*340*144
    • Display: 15.5inch High Brightness LED, Visible out- door
    • Key board input words
    • 500G Capacity, supporting review in situ
    • Anti-Vibration, Anti-Dropping

    Steel Material Electric Winch


    • Motor Power: 3.7kw
    • Weight:900kg
    • Winch size: 163Lenght *140 Width *1200 Height mm
    • Self-Winding Function

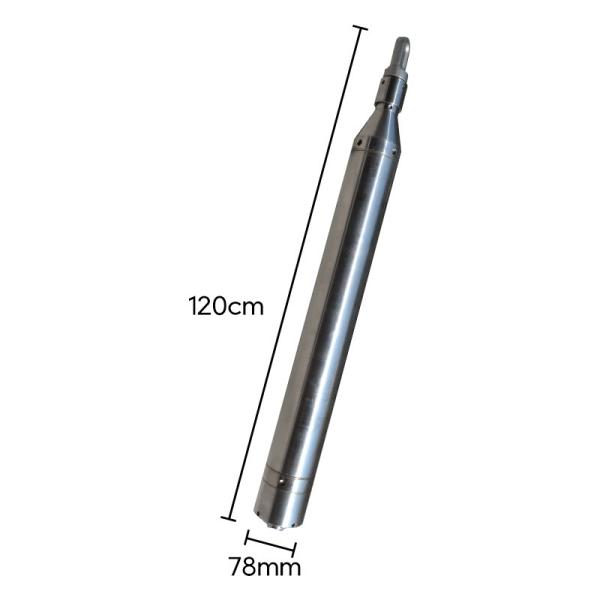

    78mm Camera
    • Material Stainless Steel
    • Camera Size: Φ78mm
    • Front Toughened Glass to increase its clearance;
    • Side Quartz Glass avoiding Destroyed
    • Pixel: 2Million
    • Angle: 110 Degree
    • Front 8 Pieces LED light
    • Anti-Pressure: 50Mpa Maximum depth up-to 5500meter.
    • Temperature 95℃ (4 hours )

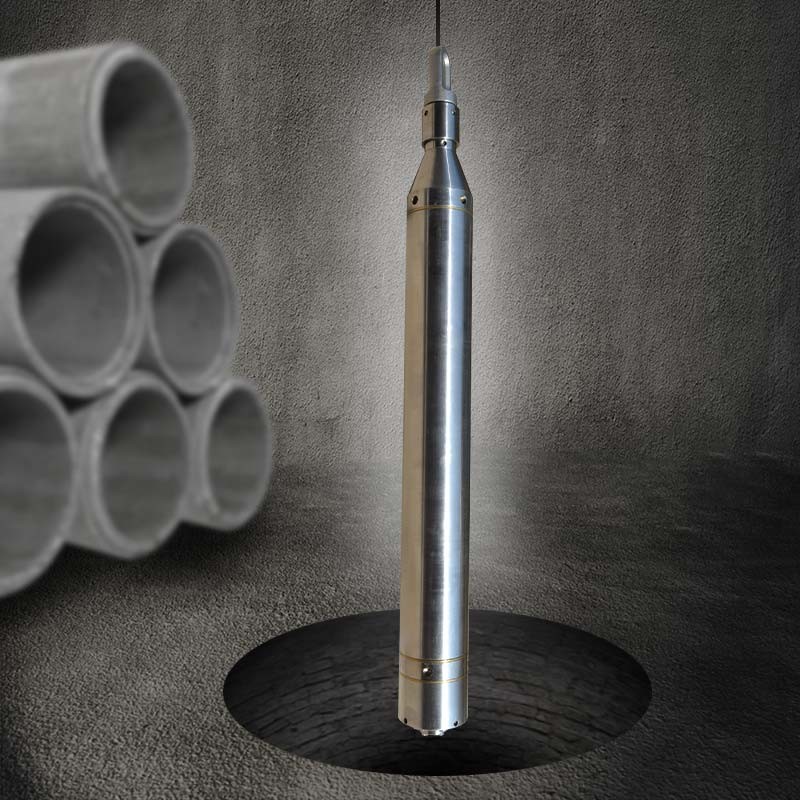

    1000m Borehole Camera Picture:


    78mm Oil Deep Borewell Inspection Camera Multi Domain Use


    78mm Oil Deep Borewell Inspection Camera Multi Domain Use
