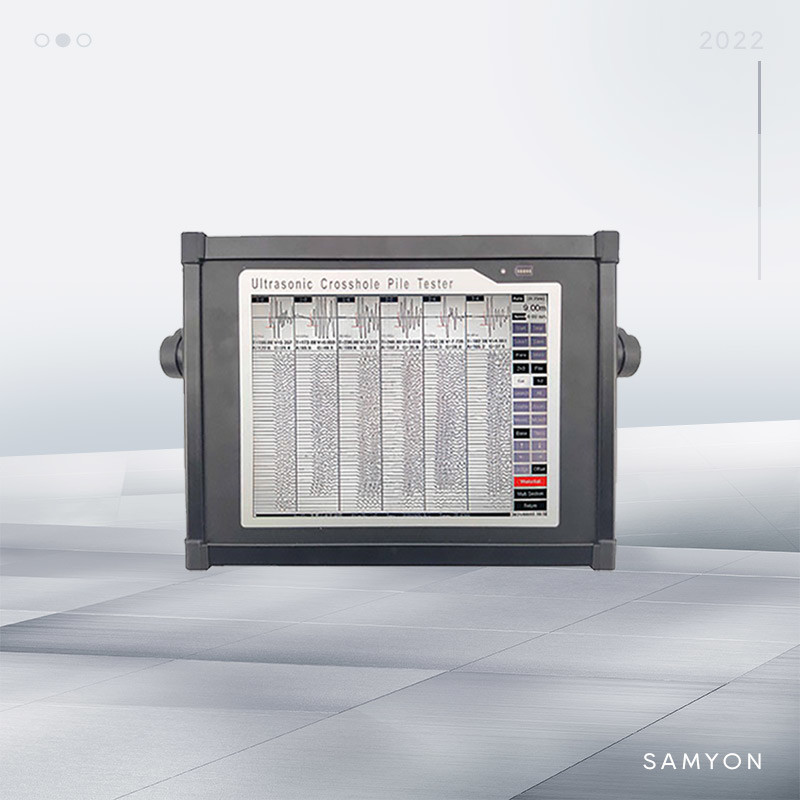

JGJ 106 Standard 3Channels Crosshole Sonic Logging Pile Testing Equipment

Crosshole Pile Testing Equipment Applications:

Crosshole Pile Testing Equipment is a specially designed to test the integrity of foundation piles(cast-in-place pile) or DWALL by acoustic-transmission method. There are three probes, every one can be receiver and transmitter. During testing,Crosshole Pile Testing Equipment can test 3sections in one time.

Crosshole Pile Testing Equipment Standard:

Crosshole Pile Testing Equipment Features:

1. A hoist can simultaneously test three sections, with 4 grades hoisting speed. The hoisting speed is up to 60m/min.

2. The Crosshole Pile Testing Equipment works more steadily and the power can be directly turned off after saving the data when the measurement is accomplished. The battery life can last above 8 hours.

3. The transmit-receive radial probe is combined with pre-posed amplification techniques, is perfectly solving such industry complexities as dimness and difficult interpretation of first wave. The size of transducer is small, with 25mm diameter and 20cm length. The measurement span of concrete is up to 8m.

4. The wire spool of radial transducer employs a high-level steel frame, which is sturdy and durable and not easy to deformation. Six colors cables are available for free choice.

5. Original iteration interpretation can automatically make the accuracy of first wave interpretation up to 99% under complex conditions.

6. The built-in software of the Crosshole Pile Testing Equipment is proficient and flexible, the interfaces can display in different color to suitable various working environments.

8. The defects can be accurately fixed by means of real-time repetition measurement and cryptographic measurement in the process of measurement.

9. Crosshole Pile Testing Equipment is characterized with 16GB large storage space, with a high-speed USB 2.0 port.

Beijing Samyon Instruments Co., Ltd is specializing on designing, developing and selling concrete Pile Testing Instruments and Optical fiber bragg Grating(FBG. )

1.Concrete Pile Testing Instruments includes: High strain dynamic pile tester, Pile integrity tester, Static pile loading tester, Ultrasonic crosshole pile tester, Ultrasonic drillhole monitor, Nonmetal ultrasonic detector and NDT (Non Destructive Testing) equipments, construction instruments, and laboratory instruments, such as, Concrete resistivity tester, Concrete migration tester, Concrete penetration tester, Crack width/depth meter, Rebar location system, Test hammer, Strength tester, Concrete defect tester, Corrosion tester, Colorimeter, Hardness tester, Ultrasonic flaw detector, Concrete testing equipment, Soil testing equipment, Cement testing equipment, Asphalt testing equipment, and so on . The company takes the science and technology as the guide, with strict management and strong research and development team.

    High Strain Dynamic Pile Tester (Also named PDA by PDI company. )  ;  Low Dynamic Pile Tester (PIT or PET for short); Untrasoic Crosshole Pile Tester for 2, 3 ,4 channels.; Drillhole Monitor  (Also named Koden from Japan company. )

High Strain Dynamic Pile Tester projects at field. If clients need, we also can do the testing compare with PDA from PDI company. We already have done testing at different countries. We got very good feedback from our professional pile testing clients and relative company.

Low Strain Dynamic Pile Tester at field with our software;  Static Load Pile testing at field with our software.

Drill hole monitor testing at field with 100meter depth, with automatic stop function to save untrosonic sensor drop in wells making lost for inspection company.  We also can supply drillhole monitor with 150m depth.

2. Optical Fiber Bragg Grating for temperature and Strain gauge

As FBG strain gauge and temperature sensor are popular in construction monitor system, we also concentrate in this aspects for many years. DTS. DVS system.

Our Lab for optical fiber bragg grating

Oven Humidity and temperature testing.

SAMYON will follow the operation principle to pay more attention to the needs of customers and provide the high quality, competitive products and convenient services to the market with outstanding research and development ability and the exquisite technology.
With more than 10years experiments, SAMYON commits us supply professional line instruments and service to our clients refers to Building, Bridge, Highway, Channel, Airport and so on. At present, we have many international customers from European countries, UK, USA, Thailand, India, Indonesia, South Africa, Pakistan, Singapore, Austrilia, Vietnam, Russia, Brazil, Chile, and so on.
